Figure W. Two-way Object-Separated Bike Lane Using Flexible Delineators

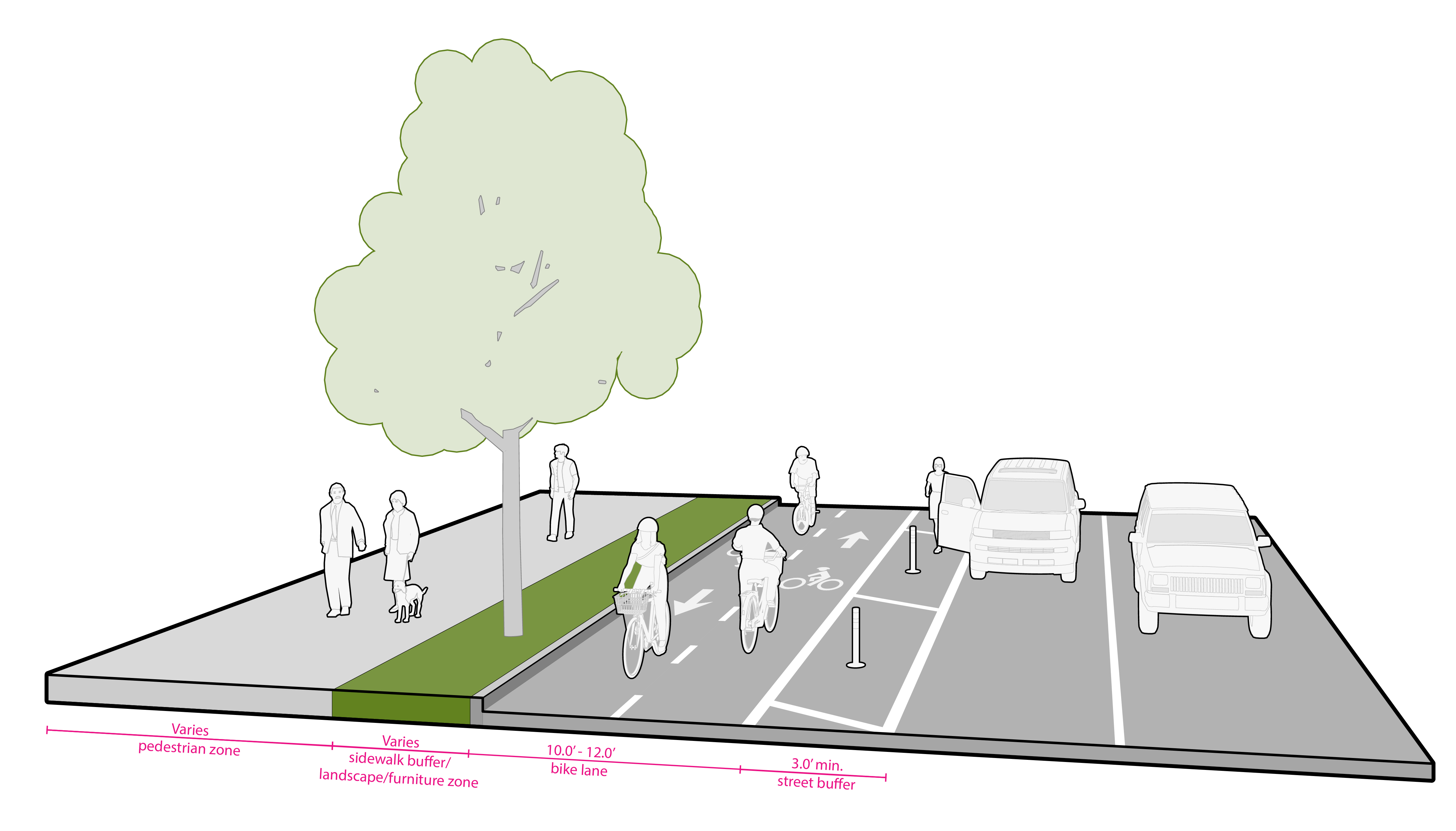

Figure of two-way object-separated bike lane using flexible delineators. figure shows pedestrian zone, sidewalk buffer/ landscape/furniture zone, a 10′-12′ bike lane, a 3′ minimum street buffer, a parked car in the flex zone, and a car in the travel lane.
